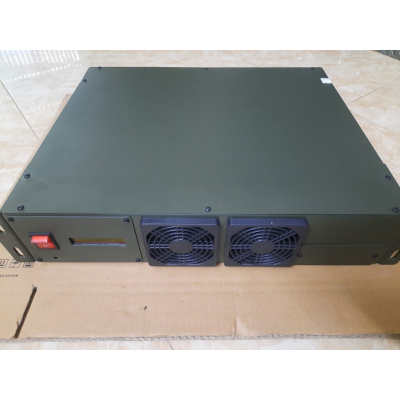

- Inverter 220VDC/220VAC sóng sin chuẩn
- Bảo vệ phần cứng và phần mềm, độ tin cậy cao
- Bảo vệ ngược cực tính, bảo vệ đầu vào điện áp( quá áp, thấp áp )
- Bảo vệ quá dòng, quá nhiệt, ngắn mạch.
- Chức năng khởi động mềm.
| Model (YKDA-HD**) | 500 | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 |
| Rate capacity（VA） | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | 8 |
| Rate output power | 400 | 800 | 1600 | 2400 | 3200 | 4000 | 4800 | 6400 |
| Dc input | Rated input voltage | 220VDC |
| Rate input Current | 3A | 5A | 10.5A | 16A | 21A | 26.3A | 31.6A | 36.9 |
| Shut down voltage range | 190V～270V |
| Start-up voltage range | 207V～260V |
| Reflect noise current | ≤10% |
| AC Input | Allow bypass voltage | 220Vac±15% |
| Rate input Current | 2.3A | 4.5A | 9.1A | 13.6A | 18.2A | 22.7A | 27.3A | 31.9 |
| Bypass switch time | ≤5ms |
| AC output | Rate output voltage and frequency | 220Vac,50Hz |
| Waveform | Pure Sine Wave |
| Rate output current | 1.8A | 3.6A | 7.2A | 10.8A | 14.5A | 15.9A | 19.1A | 22.3 |
| Output voltage precision | 220V±1.5% |
| Output frequency precision | 50Hz±0.1% |
| Waveform distortion | ≤3% (linear load) (THD) |
| Dynamic respond time | 5% (Load0←→100%) |
| Power factor | 0.7/0.8 |
| Overload ability | 120%,30s |
| Efficiency | ≥85% |
| Insulating intensity | 1500Vac,1min |
| Noise (1m) | ≤40dB |
| Operation temperature | -5℃～40℃ |
| Humility | 0～90%, non condensing |
| Operation altitude | ≤1000m |
| Inverter status | Mains supply is normal, invert normal, battery under voltage, output overloading |
| Shape | 19Inch(2U) (mm) | 482*88.8*252 | 482*88.8*352 | 482*88.8*382 | 483*176*414 |
| Weight | 6Kg | 7Kg | 8Kg | 11Kg | 15Kg | 17Kg | 18Kg |
| Standalone type(W*H*L) (mm) | / | 175*274*452 | 220*330*452 | 176*518*474.6 |
| Weight | / | 8Kg | 9Kg | 12Kg | 16Kg | 19Kg | 20Kg |
| Color | Grey/White | Black |
| Protect function | Input under/over voltage, output overloading, short circuit, city power high-low voltage protection |
| Output mode | Socket or terminal block | Terminal block |
