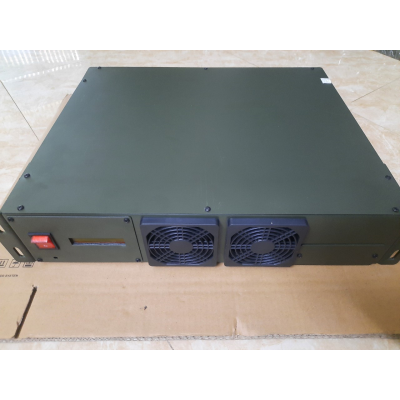

- Inverter 48VDC/220VAC sóng sin chuẩn
- Bảo vệ phần cứng và phần mềm, độ tin cậy cao
- Bảo vệ ngược cực tính, bảo vệ đầu vào điện áp( quá áp, thấp áp )
- Bảo vệ quá dòng, quá nhiệt, ngắn mạch.
- Chức năng khởi động mềm.
| Model | 500 | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 |
| Rate Capacity(KVA) | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | 8 |
| Rate power(W) | 400 | 800 | 1600 | 2400 | 3200 | 4000 | 4800 | 6400 |
| DC Input | Rate input voltage | 48V |
| Rate input Current | 10 | 25 | 50 | 75 | 100 | 125 | 150 | 175 |
| Shut down voltage range | 40V~60V |
| Start-up voltage range | 46V~57V |
| Reflect noise current | ≤10% |
| AC Input | Allow bypass voltage | 220Vac±15% |
| Rate input Current | 2.3 | 4.5 | 9.1 | 13.6 | 18.1 | 22.7 | 37.2 | 41.7 |
| Bypass switch time (ms) | ≤5ms |
| AC Output | Rate output voltage and frequency | 220Vac,50Hz |
| Waveform | Pure Sine Wave |
| Rate output current | 1.8 | 3.6 | 7.2 | 10.8 | 14.4 | 16 | 19.6 | 23.2 |
| Output voltage precision | 220VAC±1.5% |
| Output frequency precision (Hz) | 50Hz±0.1% |
| Waveform distortion (THD) | ≤3% (linear load) |
| Dynamic respond time | 5% (Load0←→100%) |
| Power factor (PF) | 0.7/0.8 |
| Overload ability | 120%,30s |
| efficiency | ≥85% |
| Operating environment | Insulating intensity | 1500Vac,1min |
| Noise (1m) | ≤40dB |
| Operation temperature | -5℃ ~ 40℃ |
| Humility | 0～90%, non condensing |
| Operation altitude | ≤1000m |
| Cooling mode | Forced wind cooling |
| Inverter status | Mains supply is normal, invert normal, battery under voltage, output overloading |
| Dimension | 19Inch(2U) (mm) | 482*88.8*252 | 482*88.8*352(mm) | 482*88.8*382(mm) |
| Weight | 5Kg | 7 Kg | 8 Kg | 11 Kg | 13 Kg |
| Standalone type(W*H*L) | / | 175*274*452(mm) | 220*330*452(mm) |
| Weight | / | 8 Kg | 9 Kg | 12 Kg | 20Kg |
| Color | White |
| Protect function | Input under/over voltage, output overloading, short circuit, city power high-low voltage protection |
| Output mode | Socket or terminal block | Terminal block
|
